Everything your production team needs to plan a confident day at The Town Hall—from first load-in to final file delivery.
1,479 seats in the heart of Manhattan — 813 orchestra, 78 loge, 588 balcony.
A production resource prepared by Local One Stagehands I.A.T.S.E.
Read this first · Arrival
The Town Hall sits steps from Times Square, and there is no room to park at the venue. If your vehicle is not dropping and leaving, a parking permit is required.
Option 01 · Expedited permit
You can pull a permit yourself directly from the City of New York at parkingpermits.nyc.gov, but if you would rather not, Adam Weingrad at Winnick Productions can expedite one for you. Contact him as soon as your dates and vehicles are confirmed.
Option 02 · Garage parking
For vehicles that will sit for the day, book a space in advance at a Times Square garage instead of circling the block. SpotHero lists rates and availability within walking distance of the stage door.
Arrange garage parking on SpotHeroDropping and leaving? No permit is needed — load in off the alley on West 43rd Street, then move the vehicle. Anything staying longer needs a permit or a booked garage. Note that the venue has no shore power.
Also plan ahead · Backline
Amps, drums, keyboards and percussion are not part of the house package, so plan to bring your own or arrange a rental. We regularly work with Boulevard Carroll and are glad to recommend them for backline in the city.
Rent backline from Boulevard CarrollTechnical capabilities
Start with the big picture, then expand any department for the equipment and support available in-house.
A flexible house rig operated from ETC ION XE or GrandMA3, with a rentable floor package for custom looks.
Plate 1 of 1
Hanging positions, trims and the full key to instrumentation for the house rig, including the rentable in-house floor package.
The house Eos show file is available to download too, so your programmer can load the room’s patch — and the Augment3d scene that comes with it — before you arrive.
Download Eos house patch · ESF3DThe full house rig as listed in the 2026 technical specifications.
Meyer Leopard arrays and Yamaha Rivage PM5 consoles support performances, presentations and broadcast feeds.
Mix position
The FOH position sits in the orchestra with clear sightlines to the stage, giving your engineer the house mix, playback and show control in one place.
House start files for the front of house and monitor desks are available to download, so your engineer can load the room’s patch, outputs and system processing before you arrive.
Download Rivage PM5 start files · ZIPHouse PA, consoles and monitor provision. Confirm the working package with the production team during your advance.
Included with the house audio package unless noted. Wireless is a Town Hall rental.
A bright 4K laser projection system with flexible playback and presentation support from the booth.

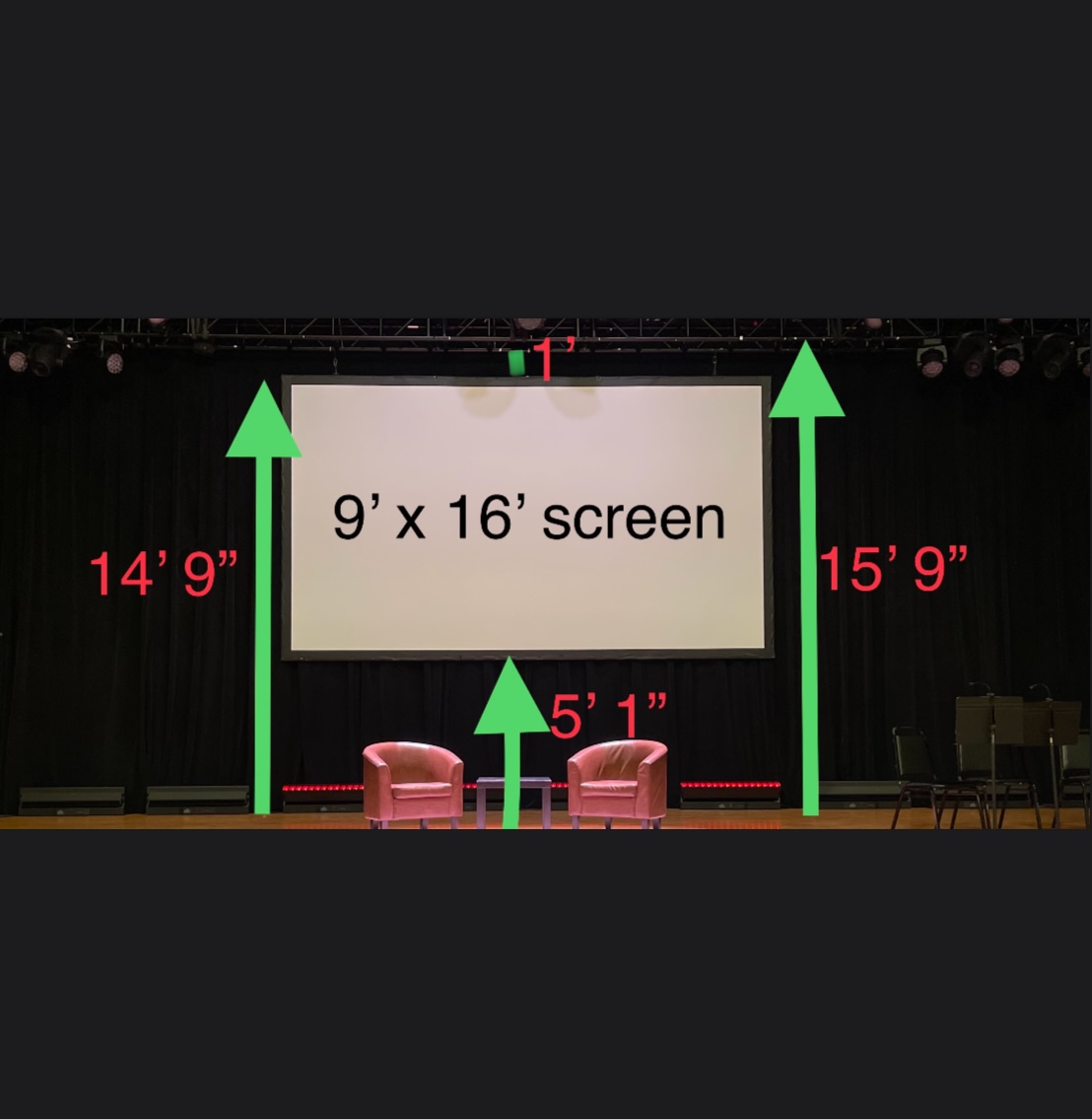

Projector, surfaces, switching and playback as supplied by the house.
Capture, switch, stream and deliver your event through an integrated 4K production suite.
Control room
A dedicated room where every camera, the program feed and the broadcast mix are cut and monitored live, isolated from the house so directors and clients can work through the show.
A dedicated capture, switching and livestream suite tied into front of house.
| Format | Linecut only | Linecut + 4 ISOs 1 hr | All 8 decks 1 hr |
|---|---|---|---|
| Apple ProRes 422 HQ | 1.66 gb/min 99.40 gb/hr | 495 gb/hr | 795.2 gb/hr |
| Apple ProRes 422 | 1.11 gb/min 66.31 gb/hr | 331.55 gb/hr | 530.48 gb/hr |
| Apple ProRes 422 LT | 0.8 gb/min 48 gb/hr | 240 gb/hr | 384 gb/hr |
| H.264/5 High | 0.025 gb/min 15 gb/hr | 75 gb/hr | 120 gb/hr |
| H.264/5 Medium | 0.167 gb/min 10 gb/hr | 50 gb/hr | 80 gb/hr |
| H.264/5 Low | 0.06 gb/min 3.6 gb/hr | 18 gb/hr | 28.8 gb/hr |
Venue pictures

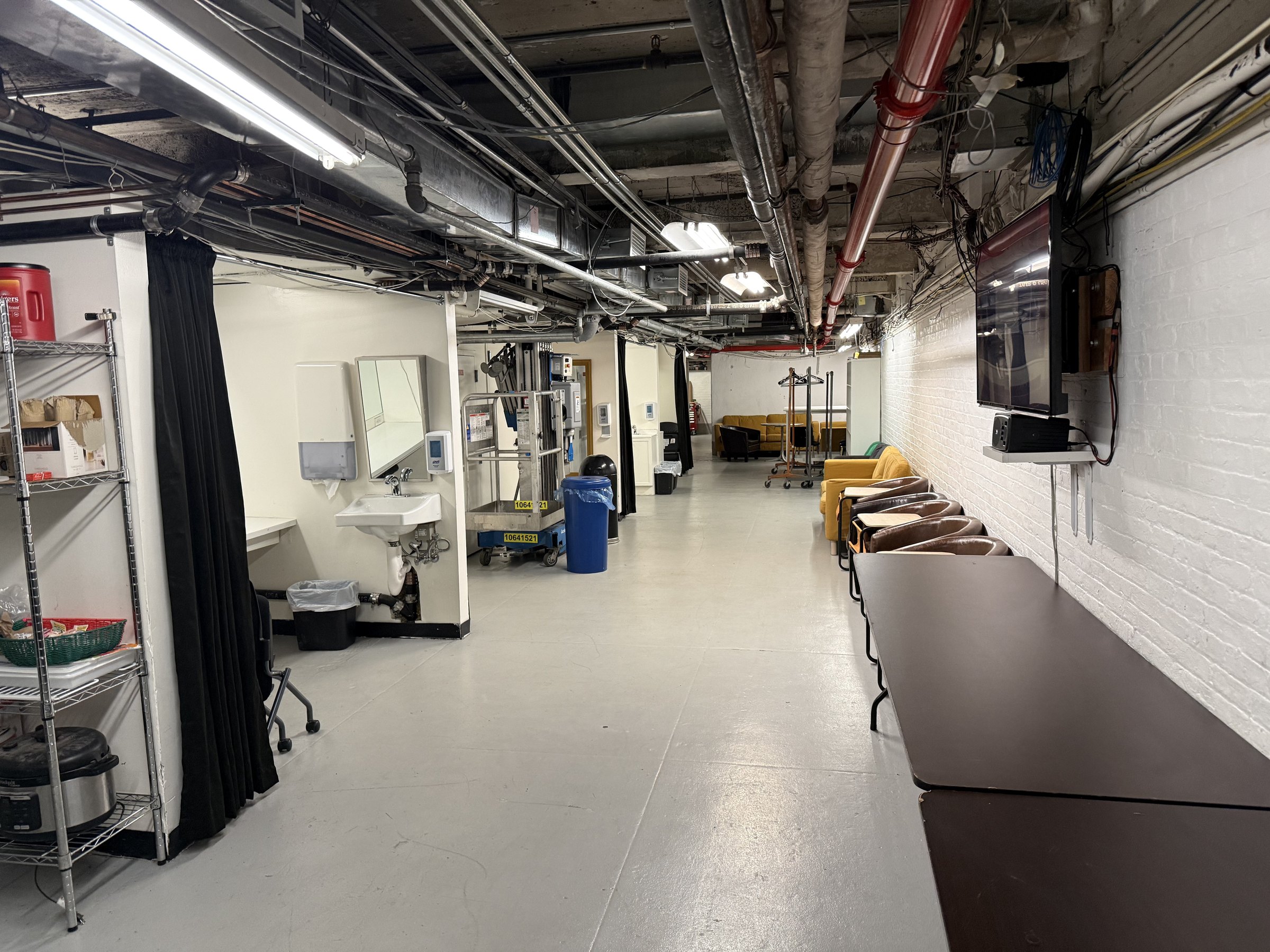

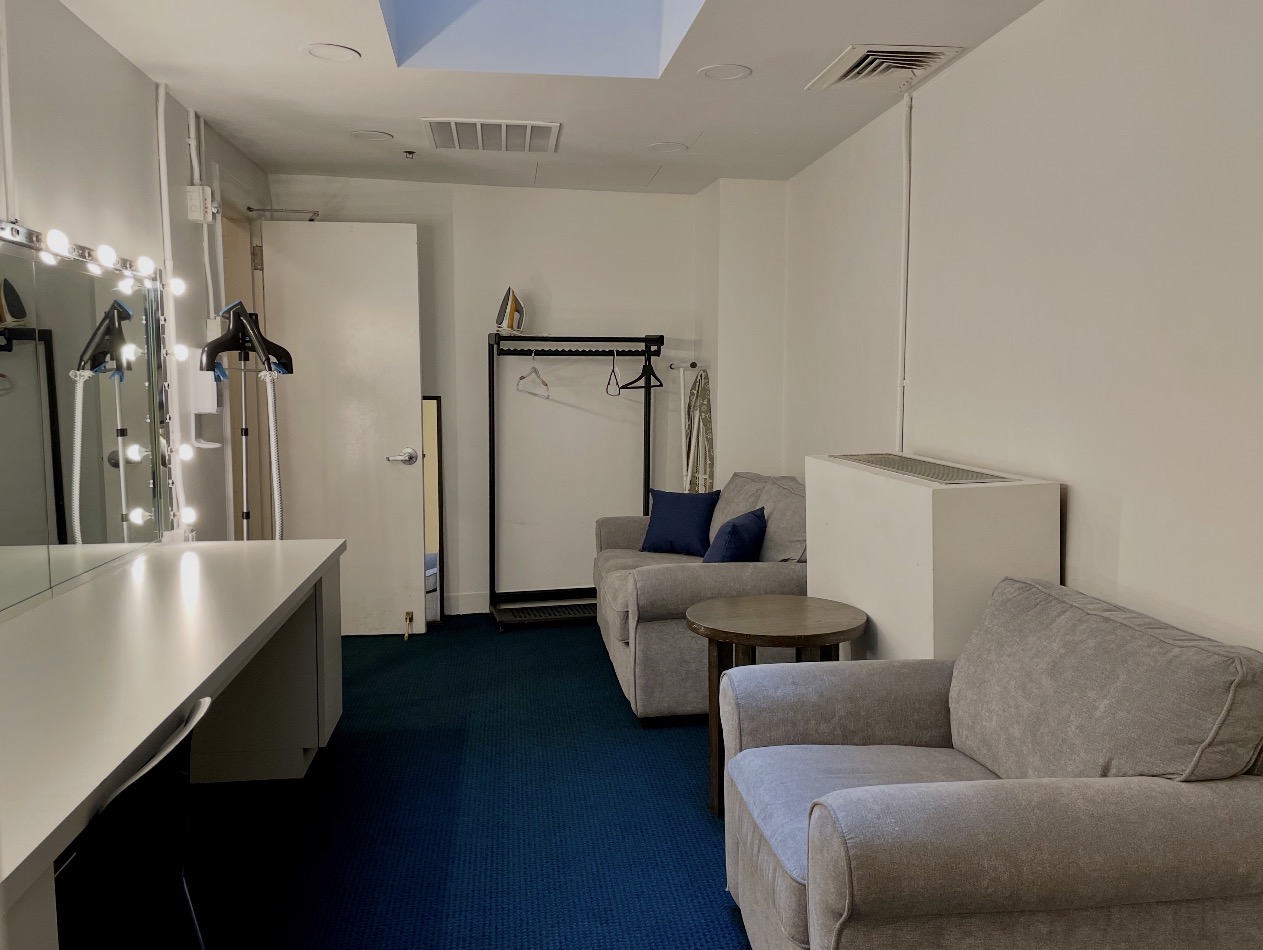

Start with the seating chart and load-in access, then browse reference photos organized by production area so crews can quickly understand access, backstage circulation, stage configurations, and working spaces.
Seating chart

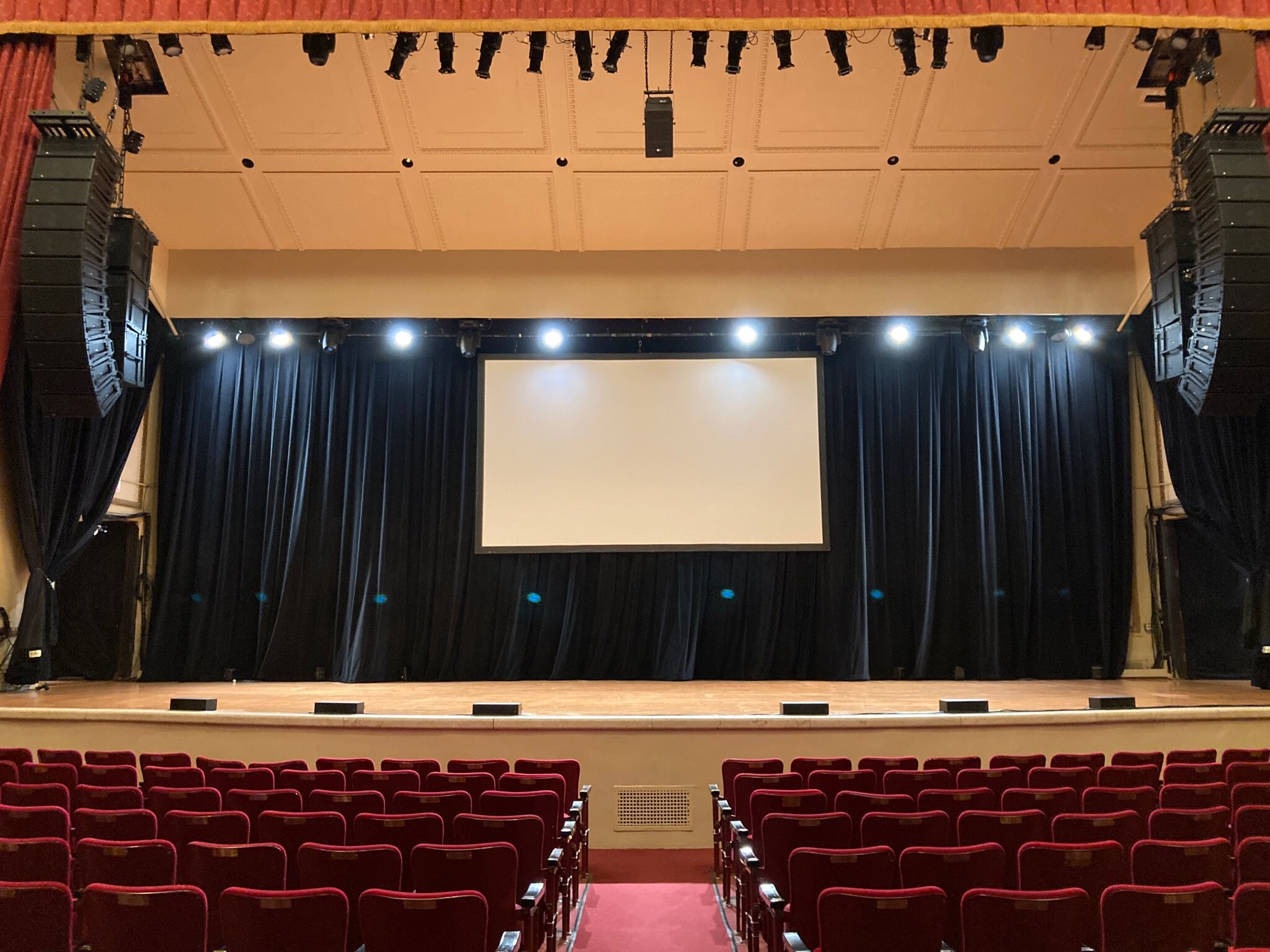

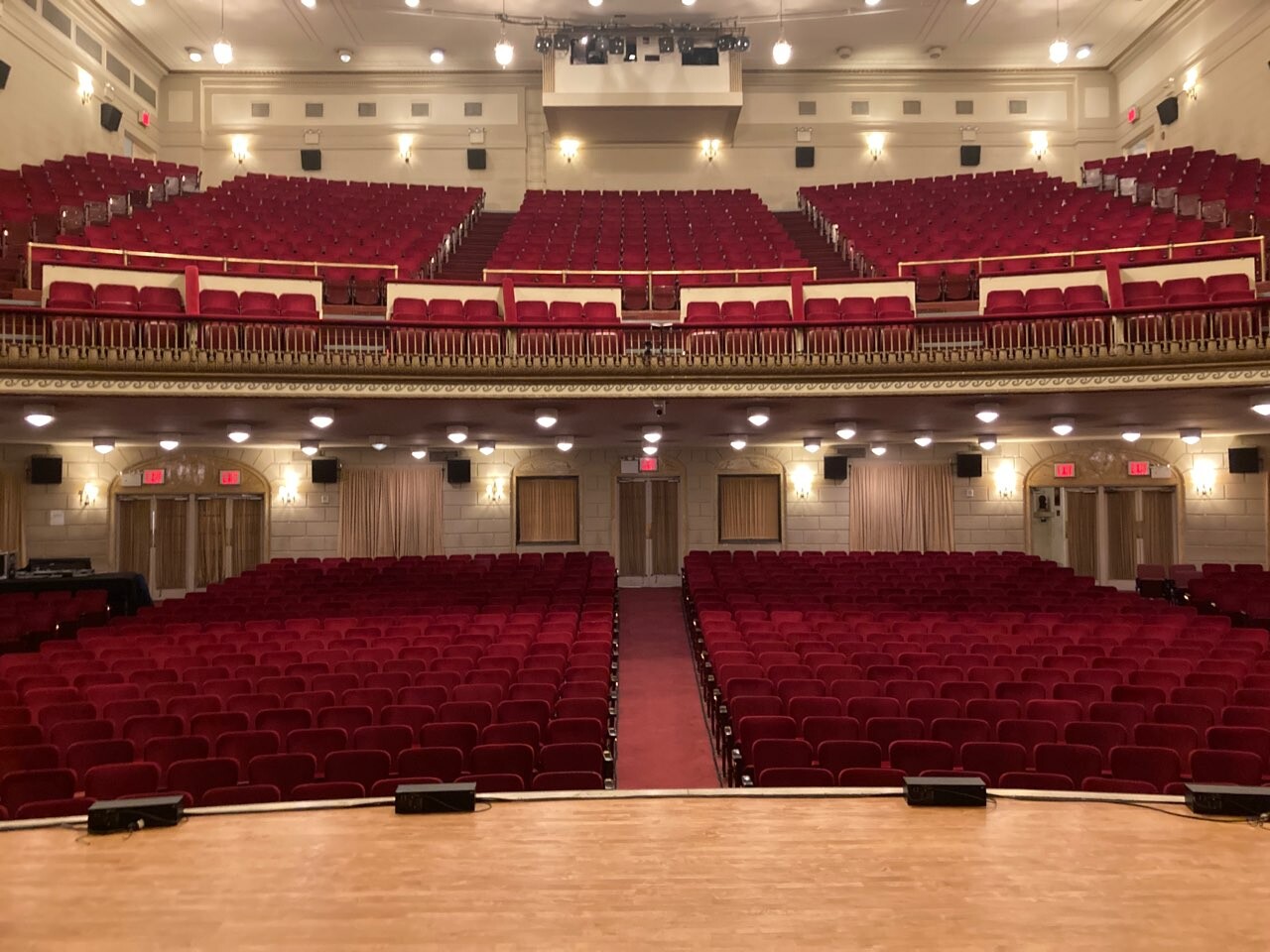

Stage

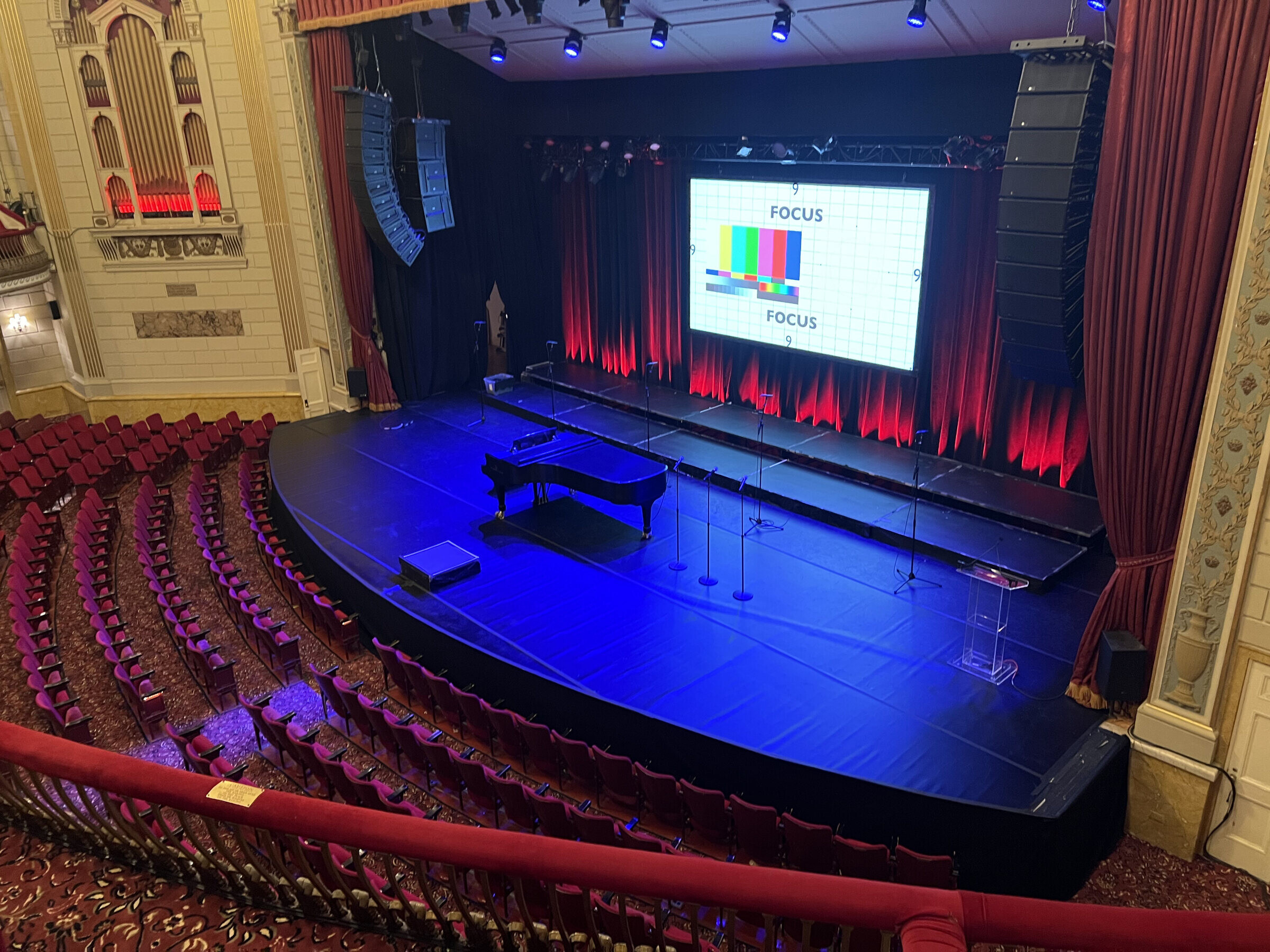

Working stage dimensions taken from the house floor plan — 50 feet wide and 20 feet deep at centre. A stage extension is available; see the stage photos and extension plan below.

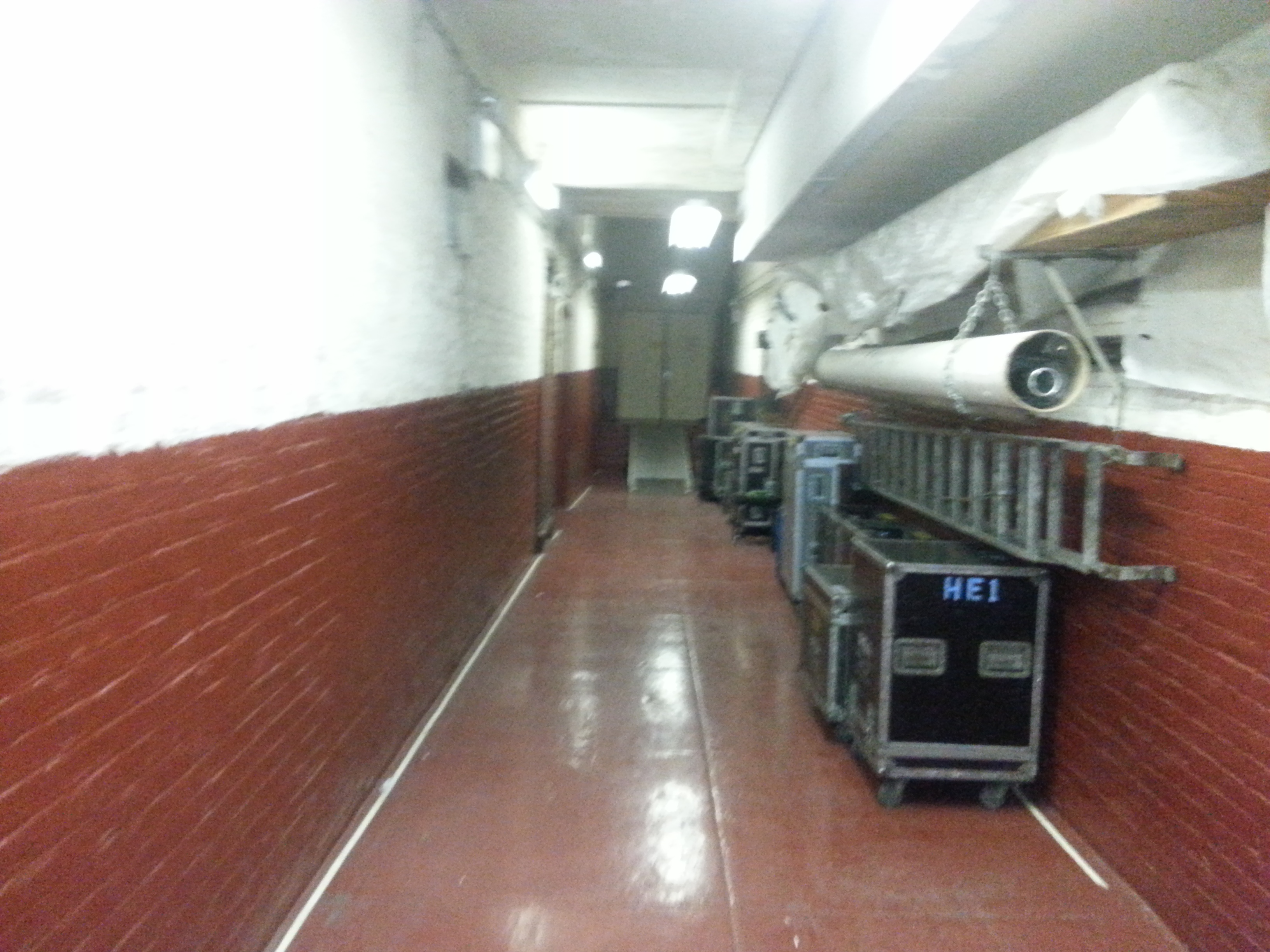

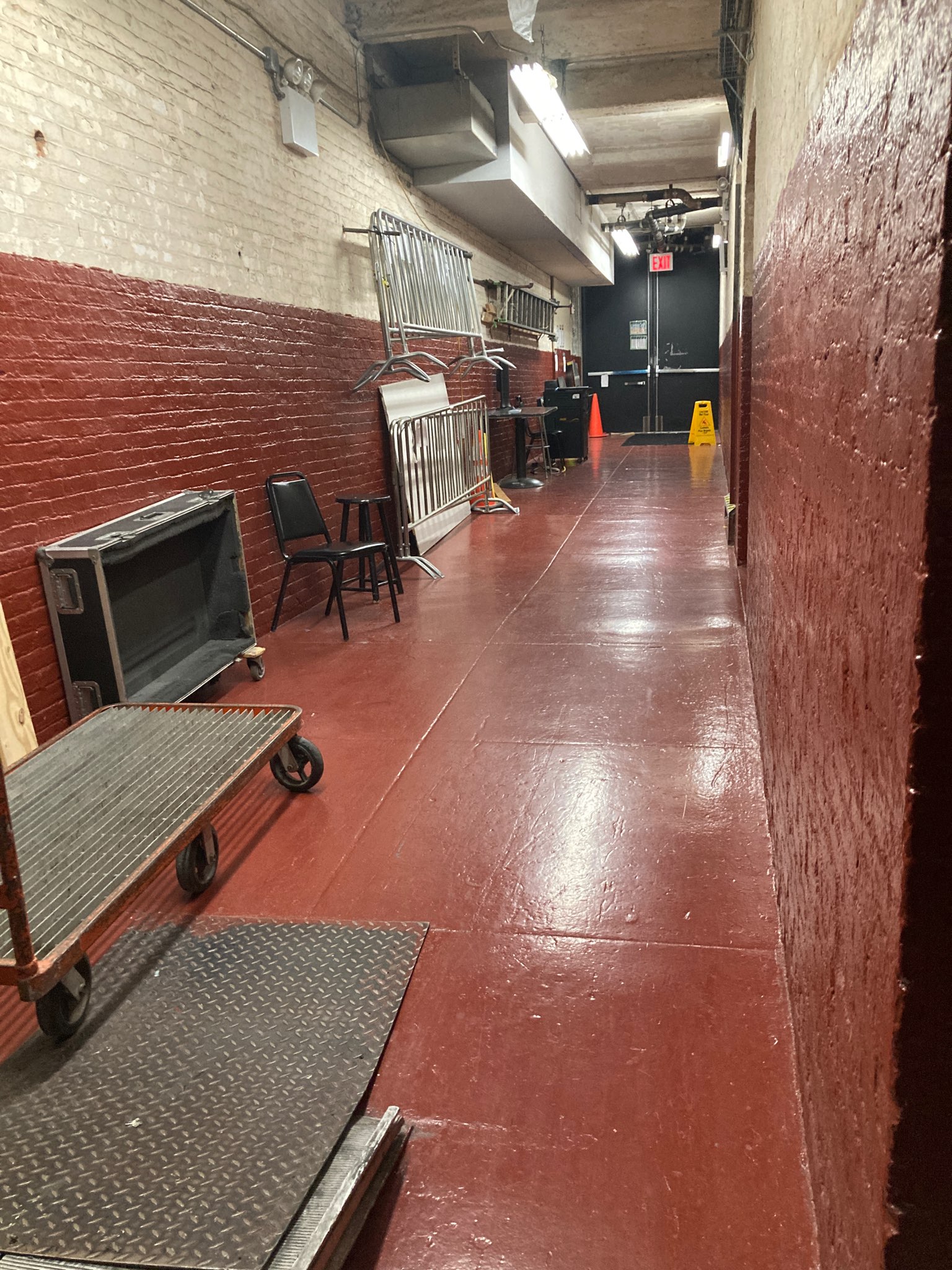

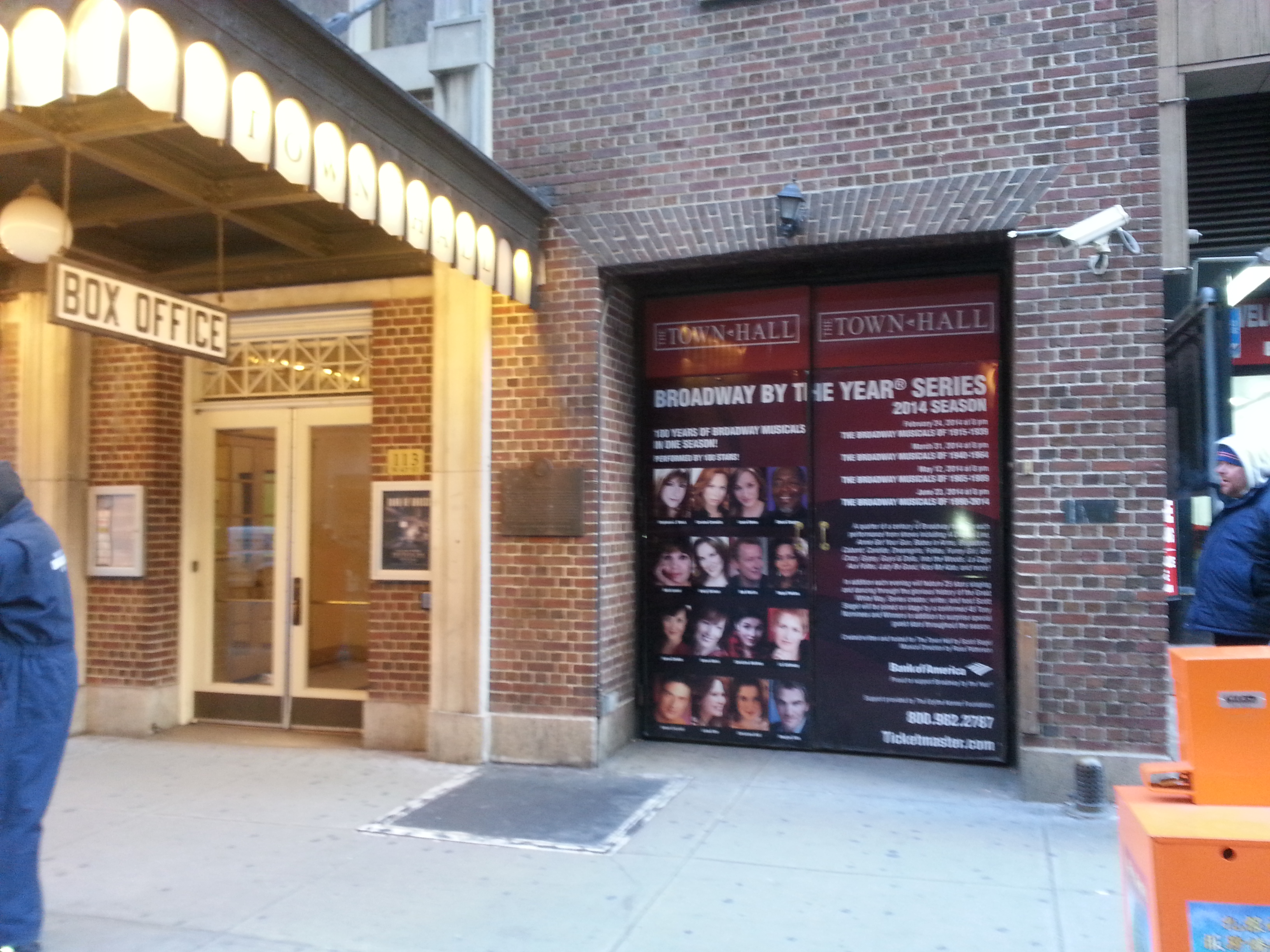

Load in & parking
Load-in is off the alley on West 43rd Street. There is no venue parking or shore power. If a vehicle is not dropping and leaving, a parking permit is required — pull one yourself at parkingpermits.nyc.gov, have one expedited in advance, or reserve a nearby garage. See parking & permits.
Every production area, newest reference photos first.
In-house inventory

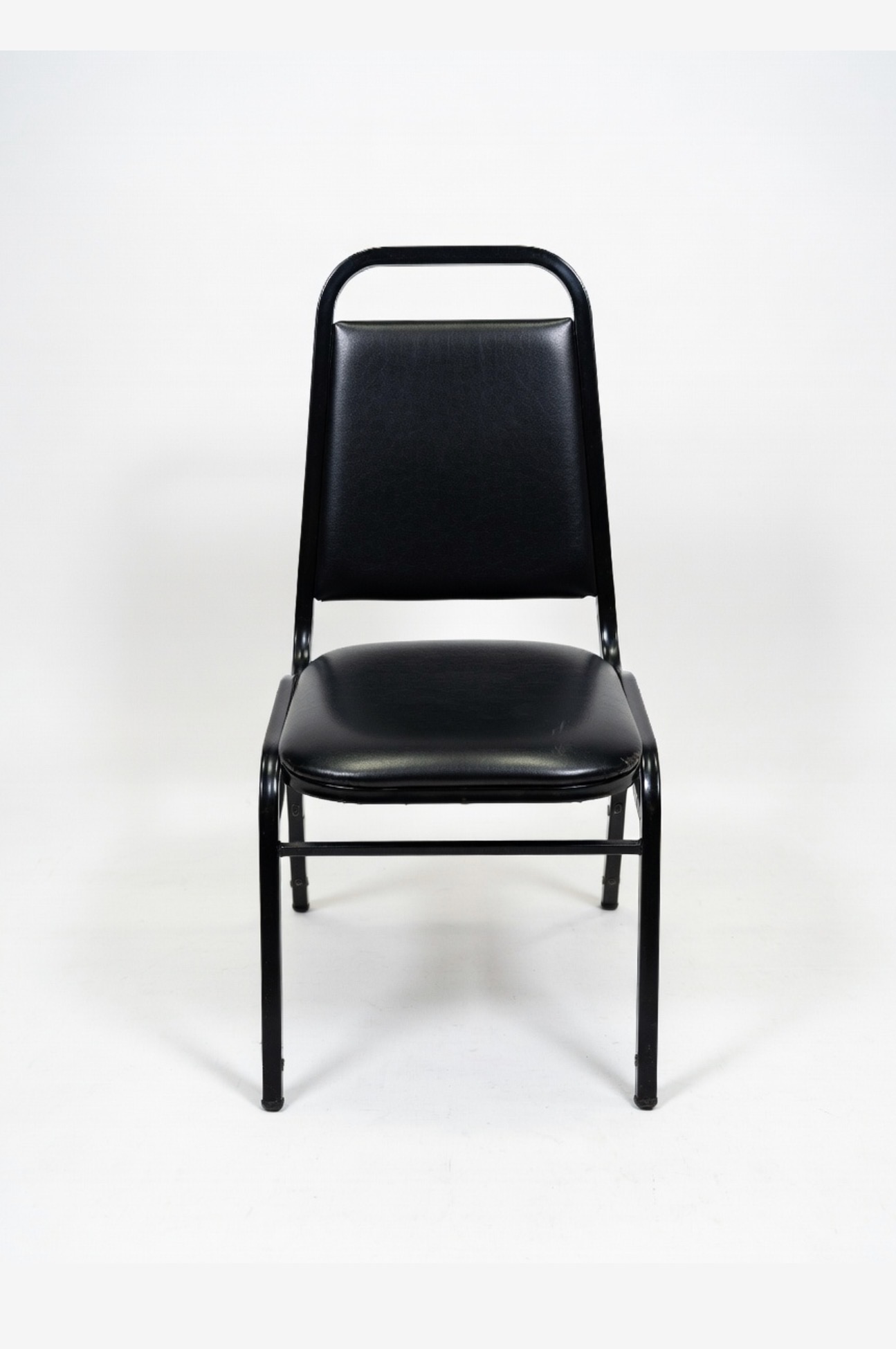

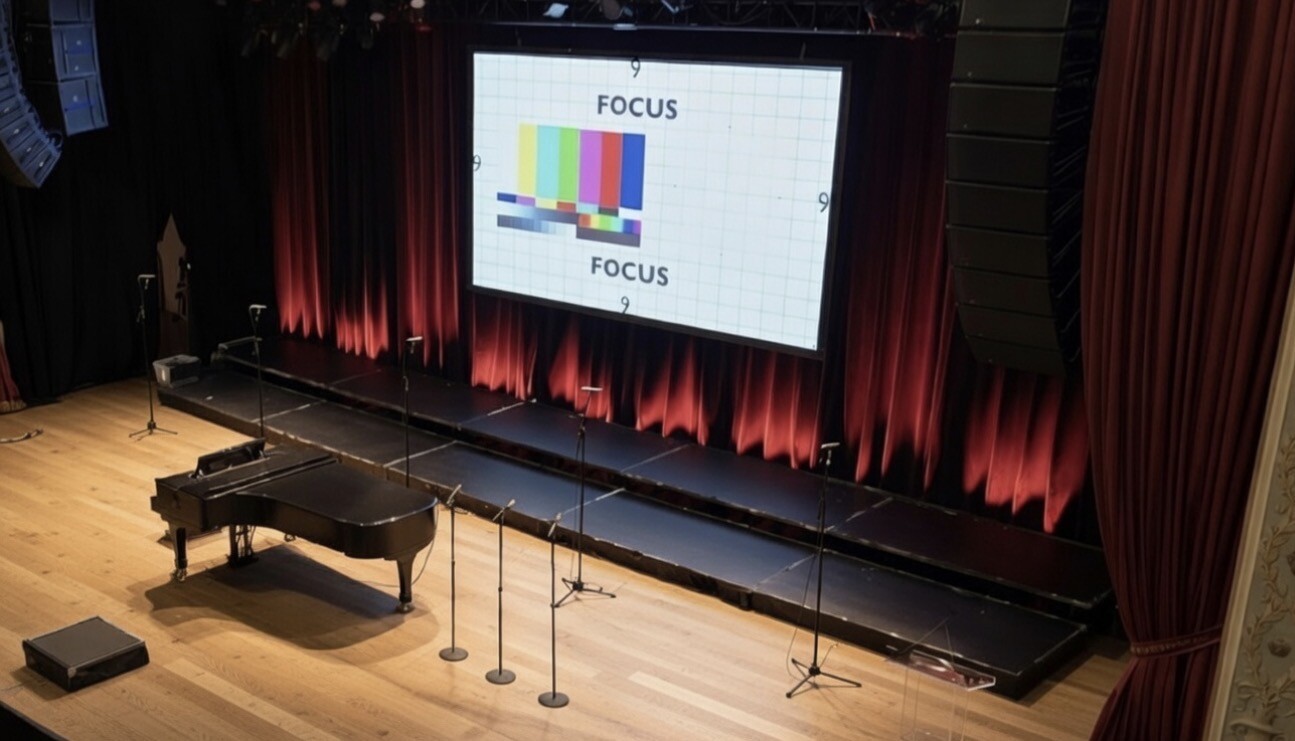

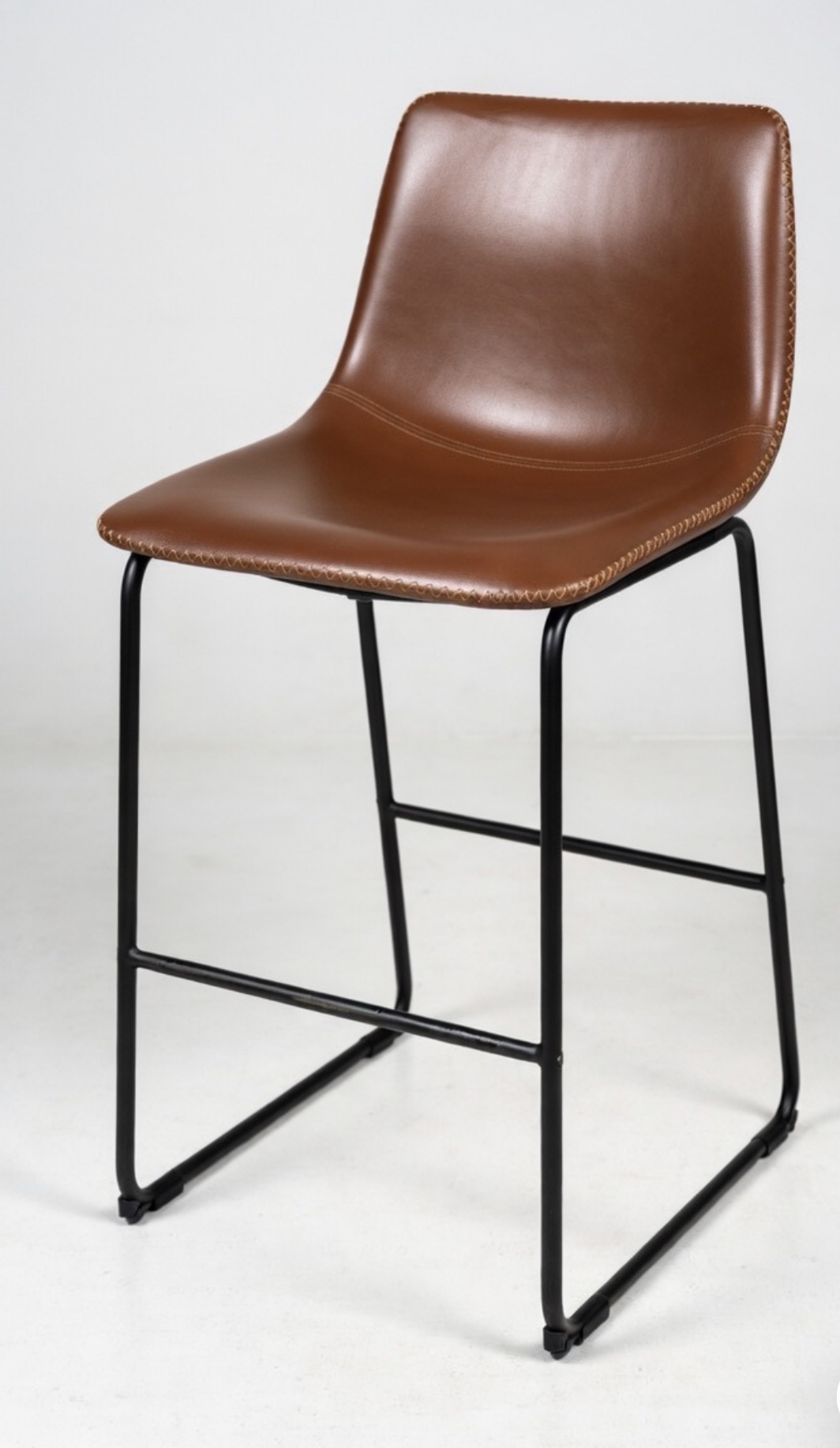

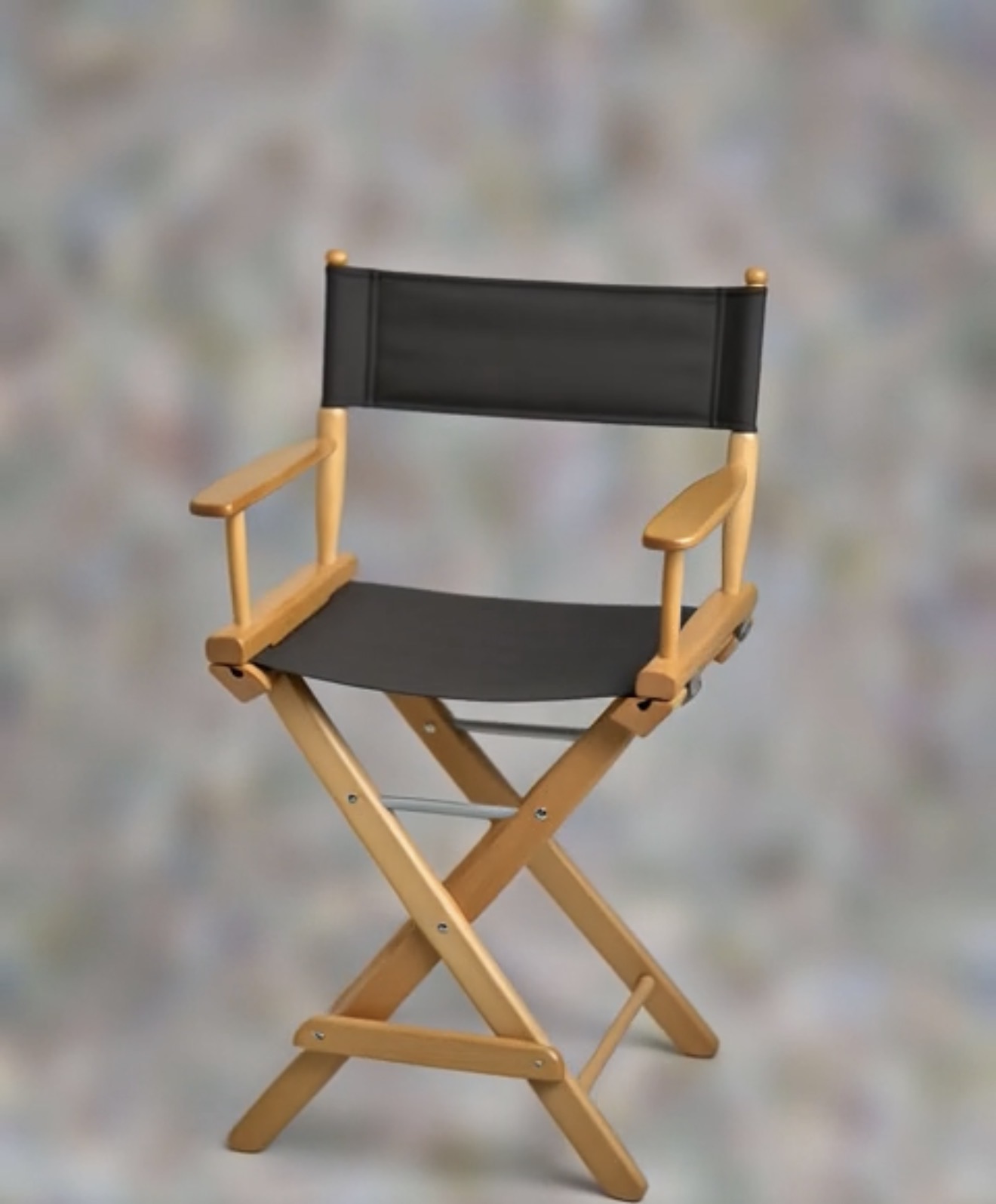

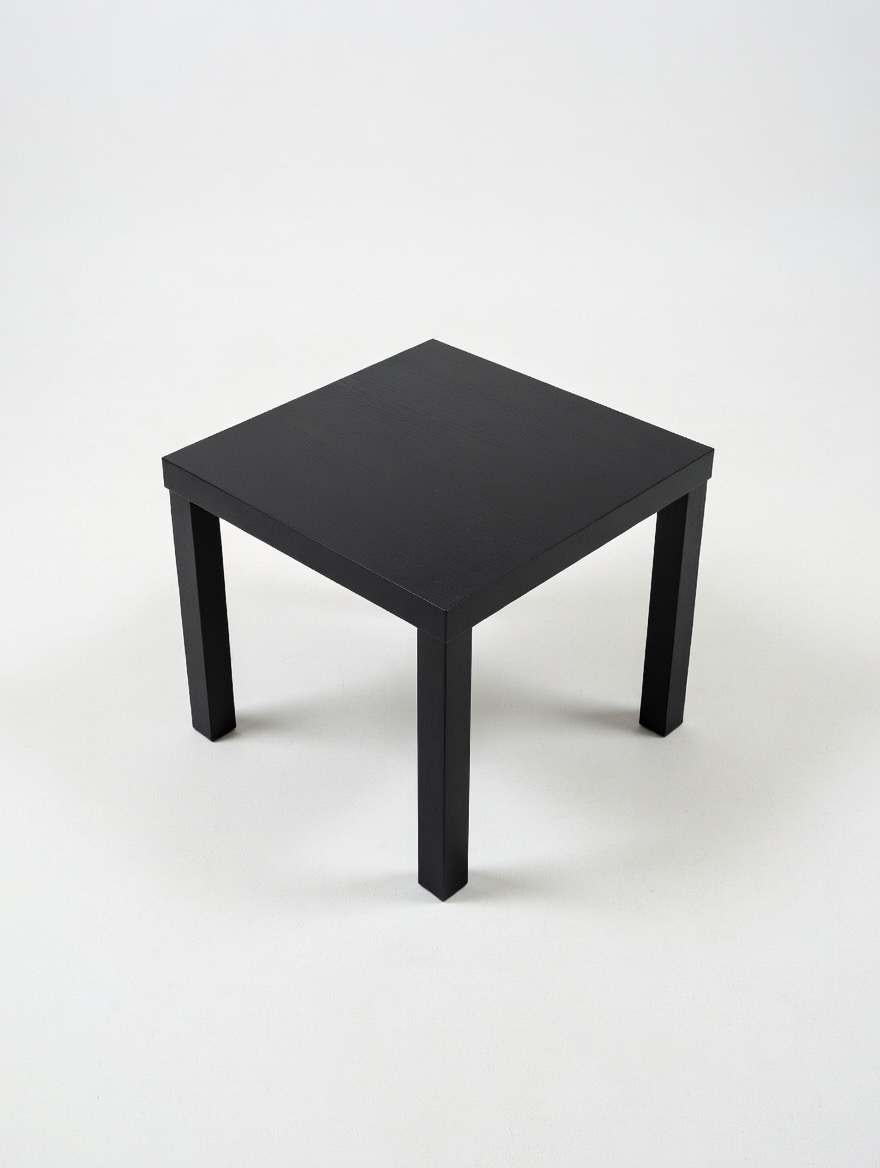

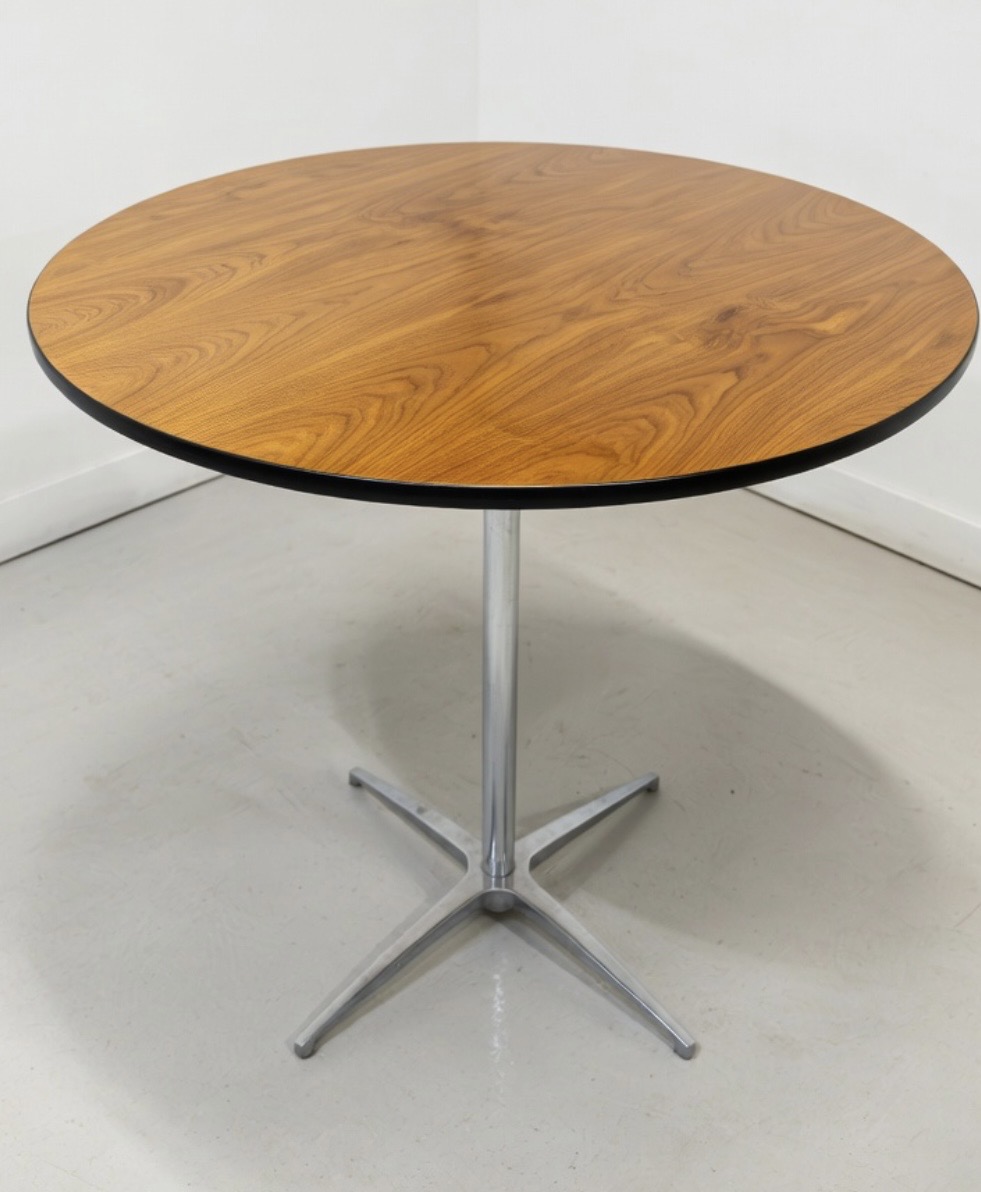

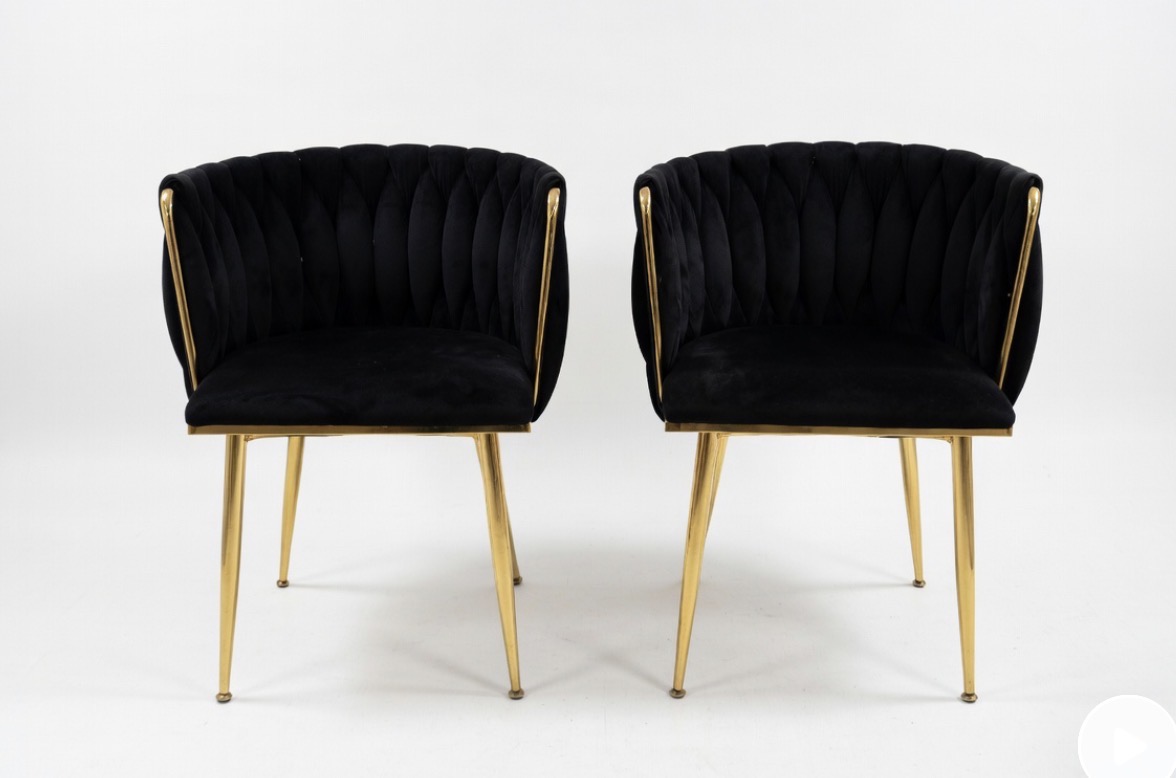

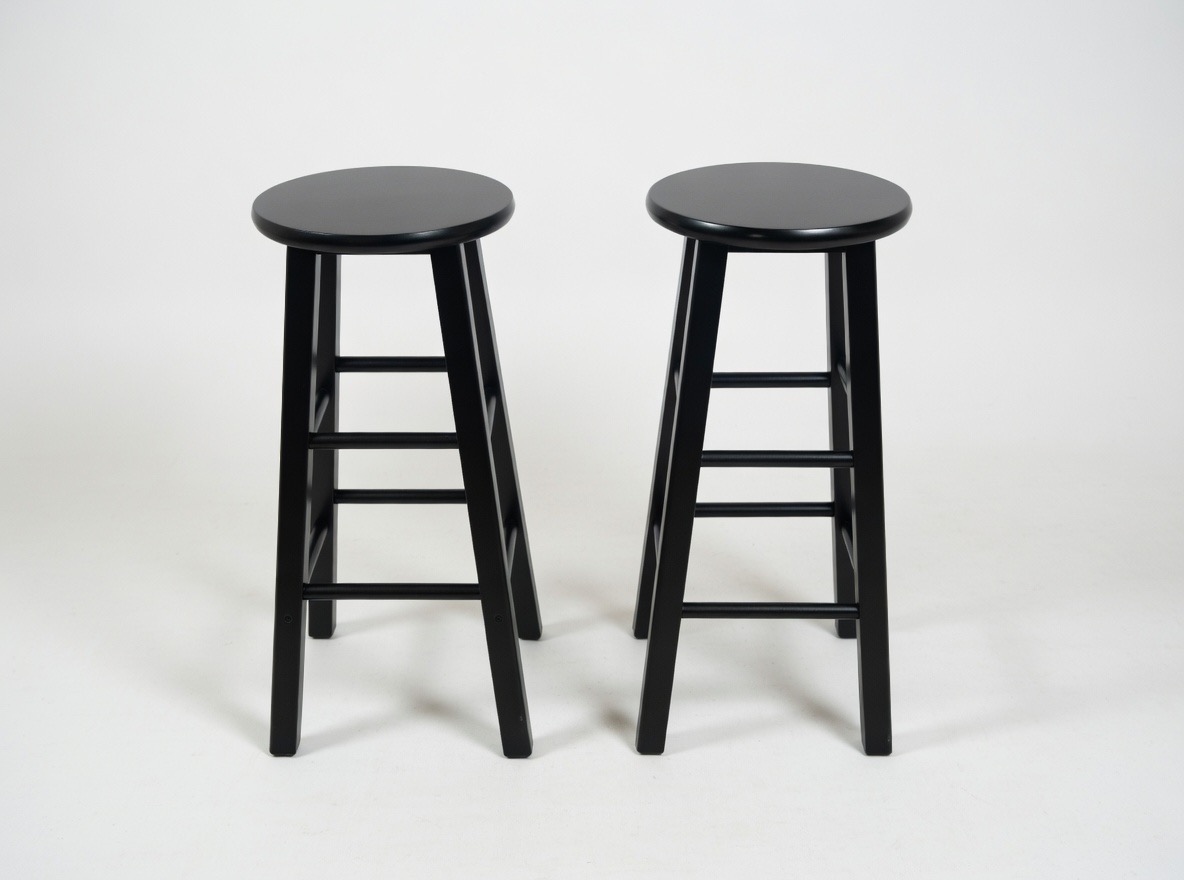

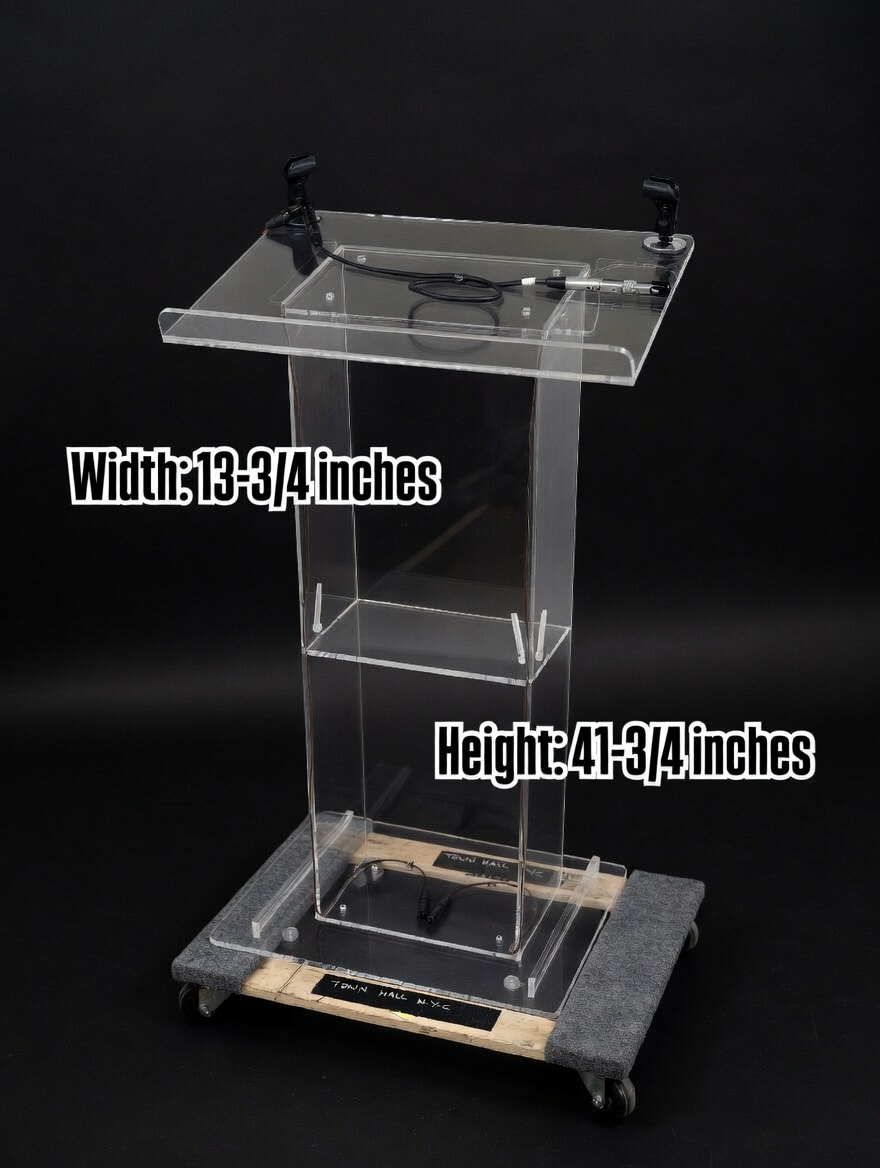

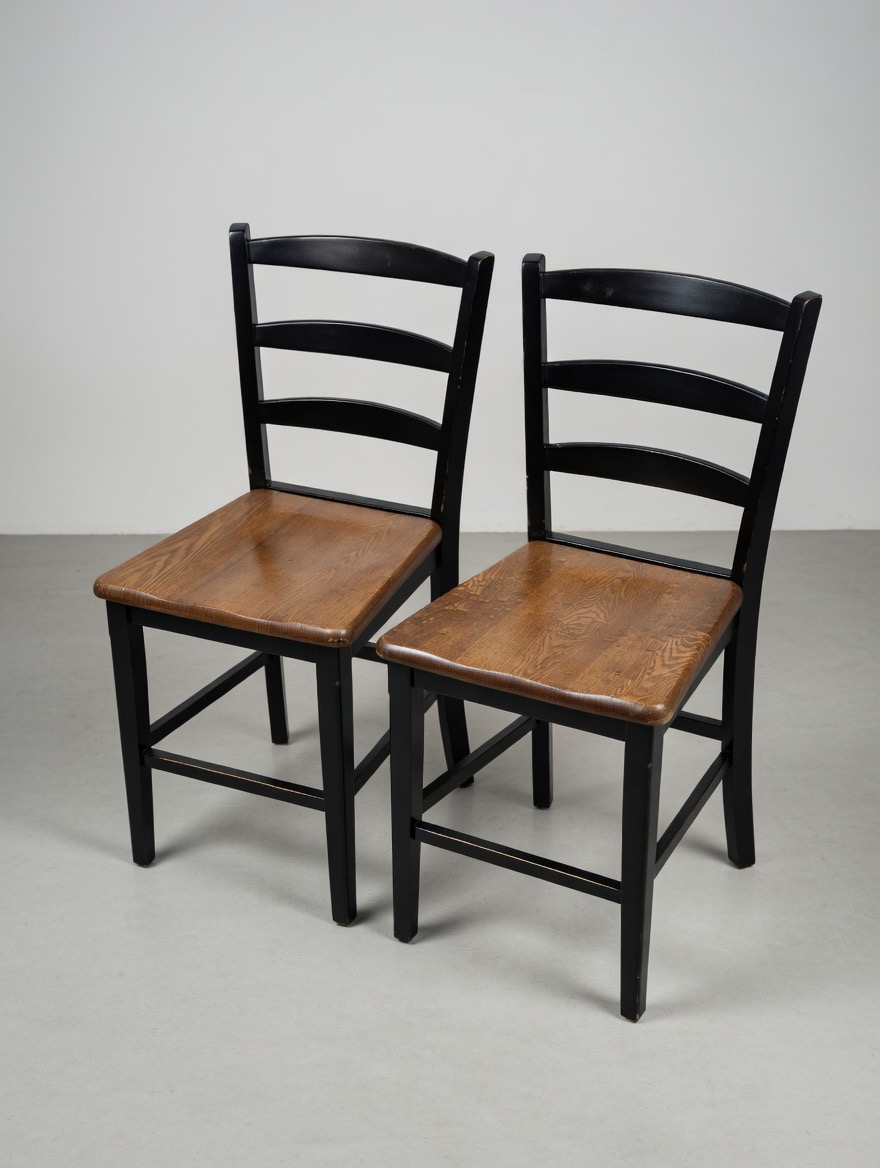

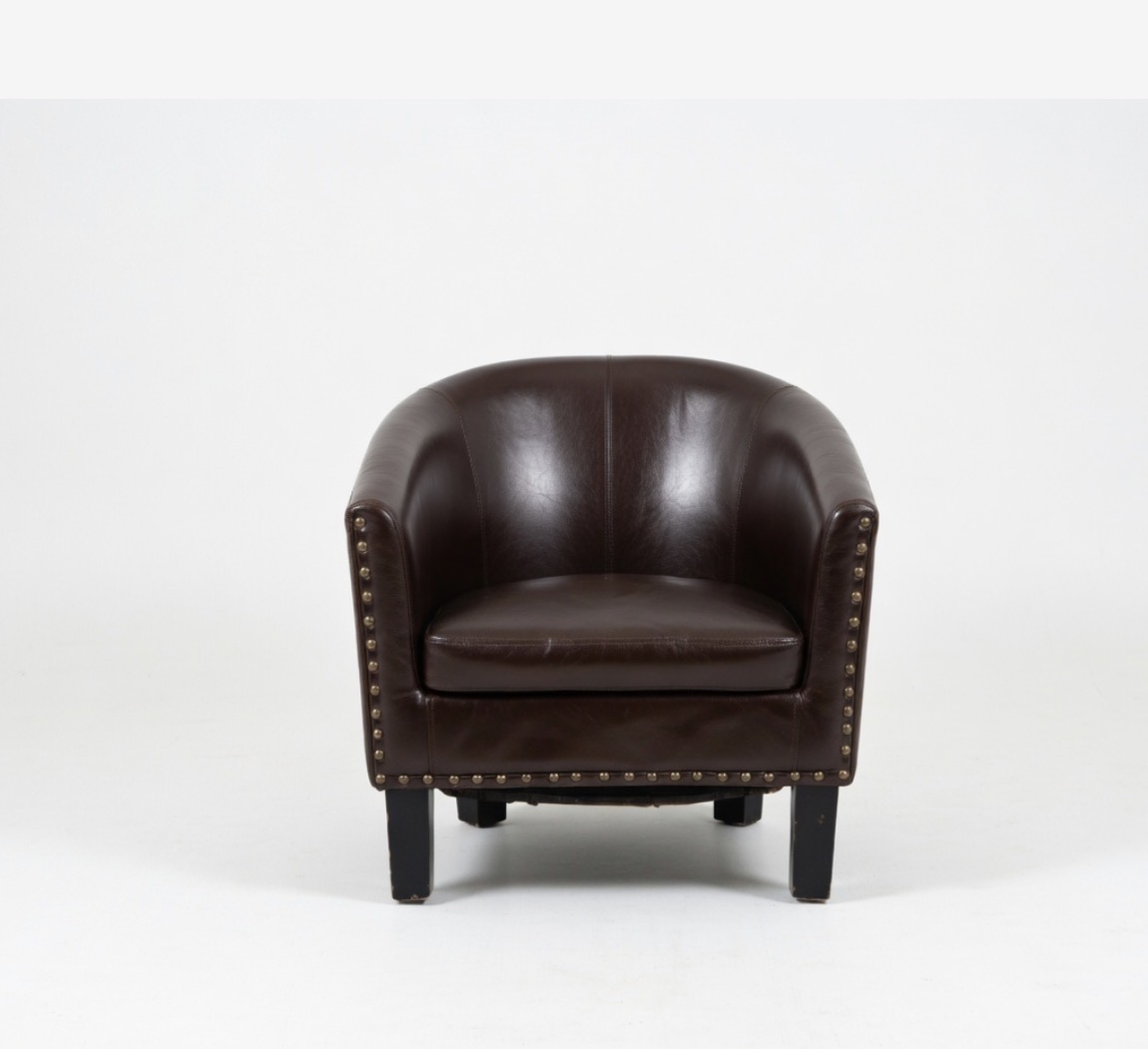

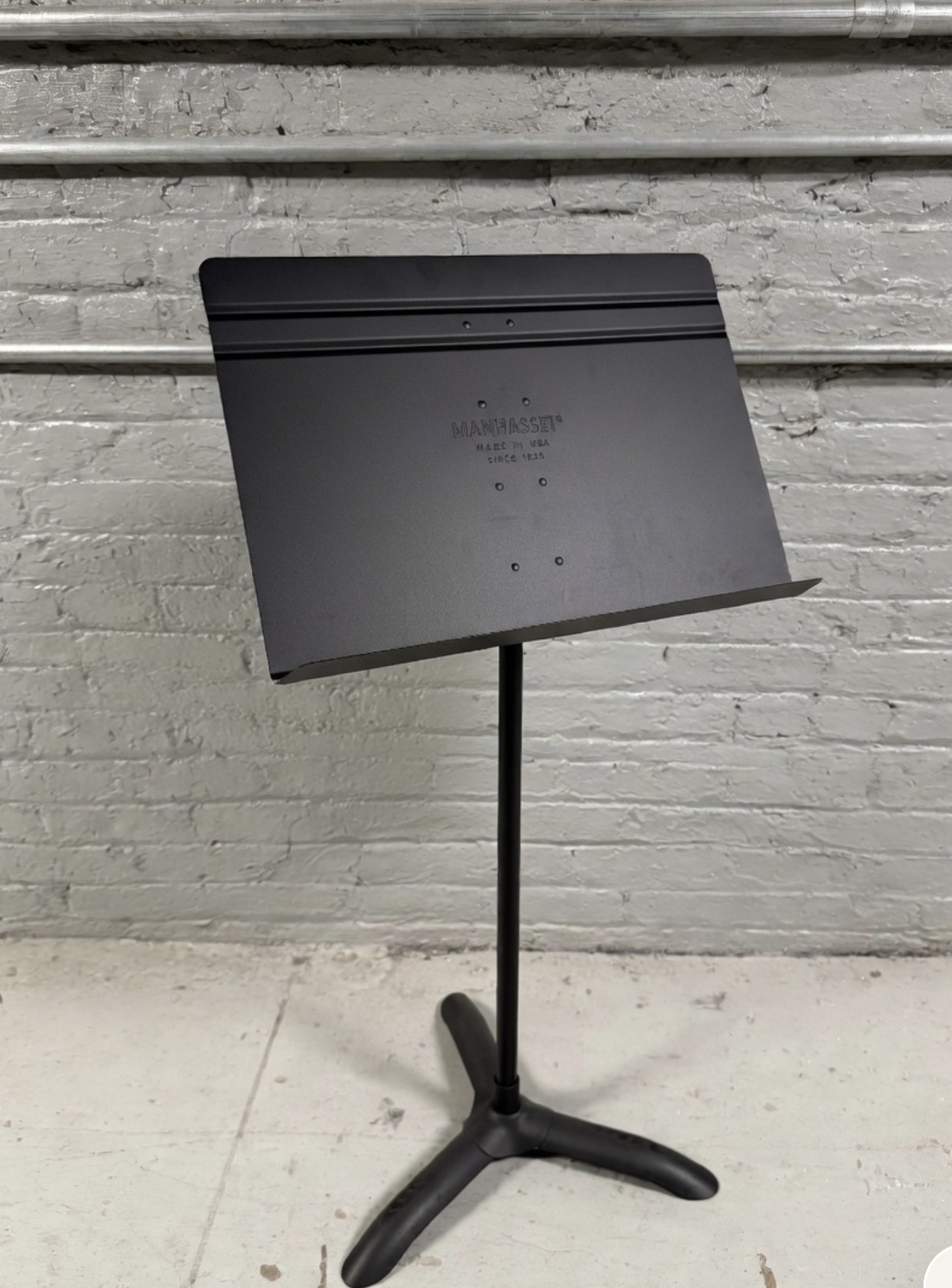

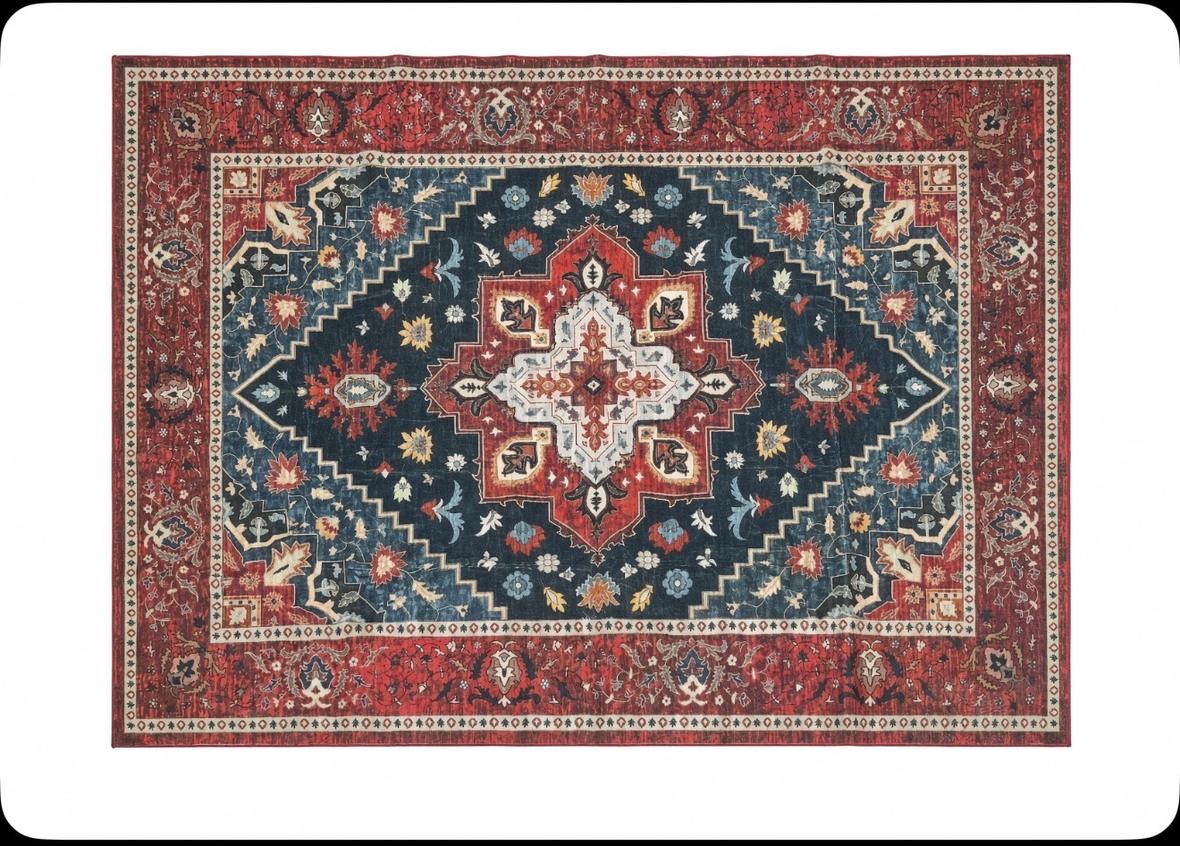

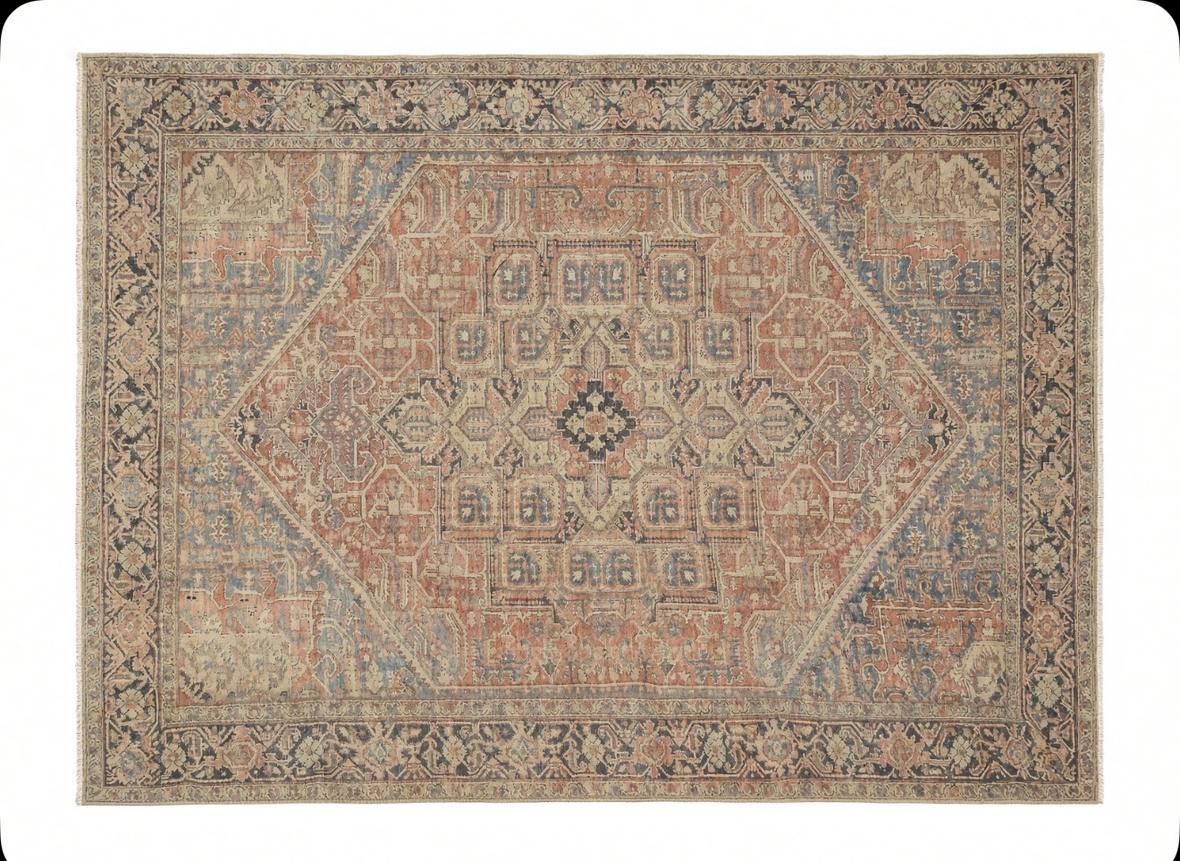

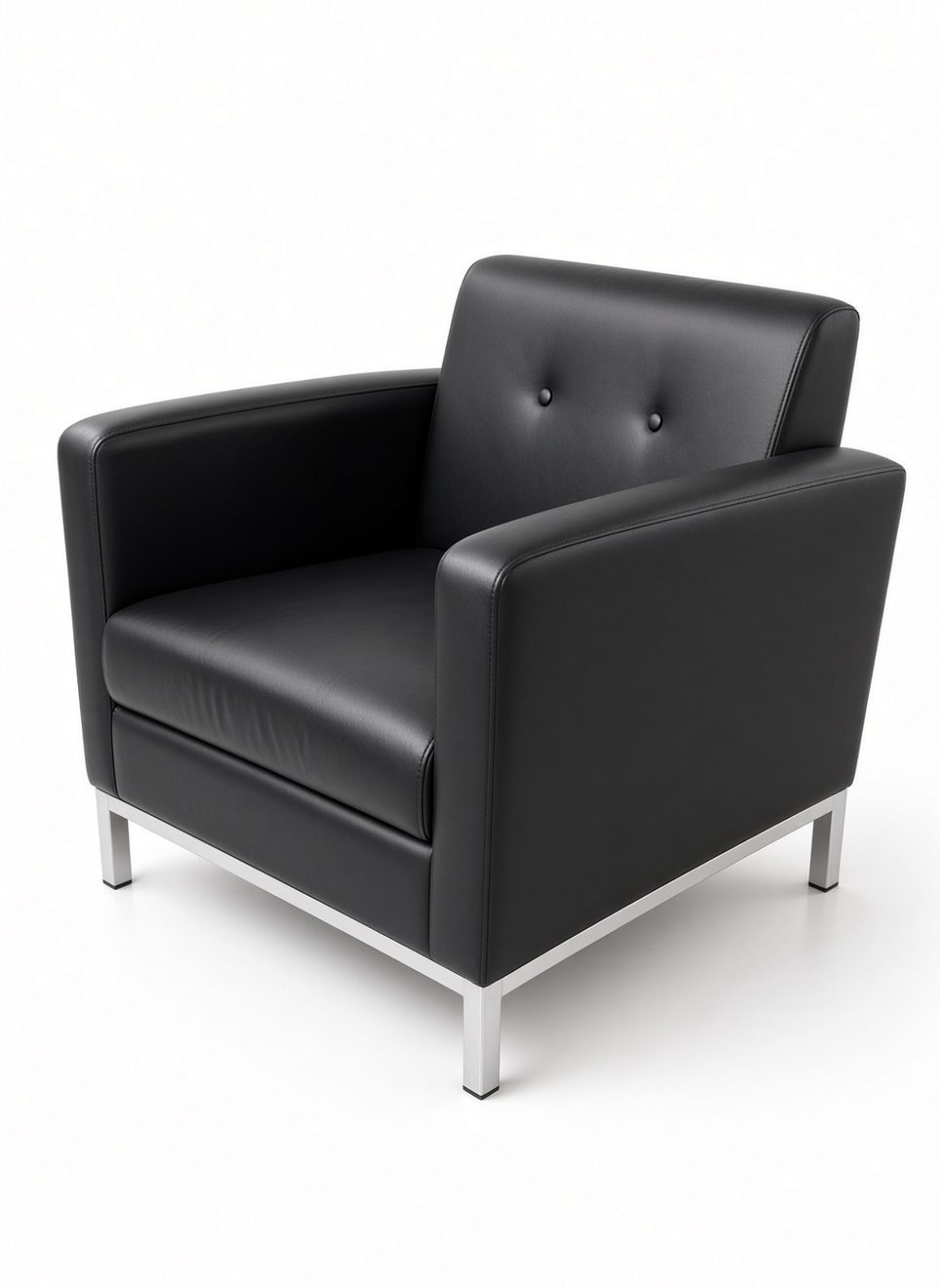

Browse available lecterns, stage furniture, and stage decks before adding outside rentals. Select any image for a closer look.
Downloadable
Current venue documents and house start files, ready to drop into your production book or forward to your designer and engineer.
Need a drawing that isn’t here? Ask the production team and the current file will be sent over.
Who to contact
Booking
Olivia Magilloliviamagill@thetownhall.org Paul Cameron Hardypchardy@thetownhall.org Rinesty Ruslir.rusli@thetownhall.orgProduction advance
Matt Konklinproductionadvance@thetownhall.org Angel RodriguezBox Office Treasurer Alex CovesAssociate Director of Marketing Ebony VinesAssociate Director of Communications Johny GreenHead of Security Rick TherouxAV EngineerProduction advance
Complete the four steps for your confirmed event. Your selection goes directly to the production team for review.
Need help first? Email the production team
Before you submit
Yes. Your draft autosaves in this browser so you can leave and come back. Attachments are the exception—add those in the final step before submitting. Most people finish in about 6–8 minutes.
Options range from an archival camera with board audio to multi-camera streaming or commercial multi-track capture. Select your expected needs and the team can refine the package.
There is no venue parking or shore power — we are right by Times Square. Anything not dropping and leaving needs a parking permit. Pull one yourself from the city at parkingpermits.nyc.gov, or have it expedited by Adam Weingrad at Winnick Productions on (212) 663-5564 or ajweingrad@gmail.com. You can also reserve a nearby garage on SpotHero. Include transportation details in your production notes.
The production team reviews your selections and documents, follows up with questions if needed, and sends a labor estimate to the email provided.
